PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed

Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: PRY-1020A
Kuantitas min Order: 1 Set
Harga: USD 68000 Set
Kemasan rincian: Mengadopsi kemasan tahan lembab dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh d
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per Bulan
Diameter Maksimum Gulungan: 1300 mm Lebar Kertas: 680~1020mm
Berat Kertas yang Berlaku: 50 ~ 130 gram/m² Ulangi Panjang Cetak: 300~680mm
Lebar Pencetakan Maksimum: 1020 mm Kecepatan Pencetakan Maksimal: 300 m/mnt
Spesifikasi menggorok: 300~680mm Kekuatan Total: 30kW

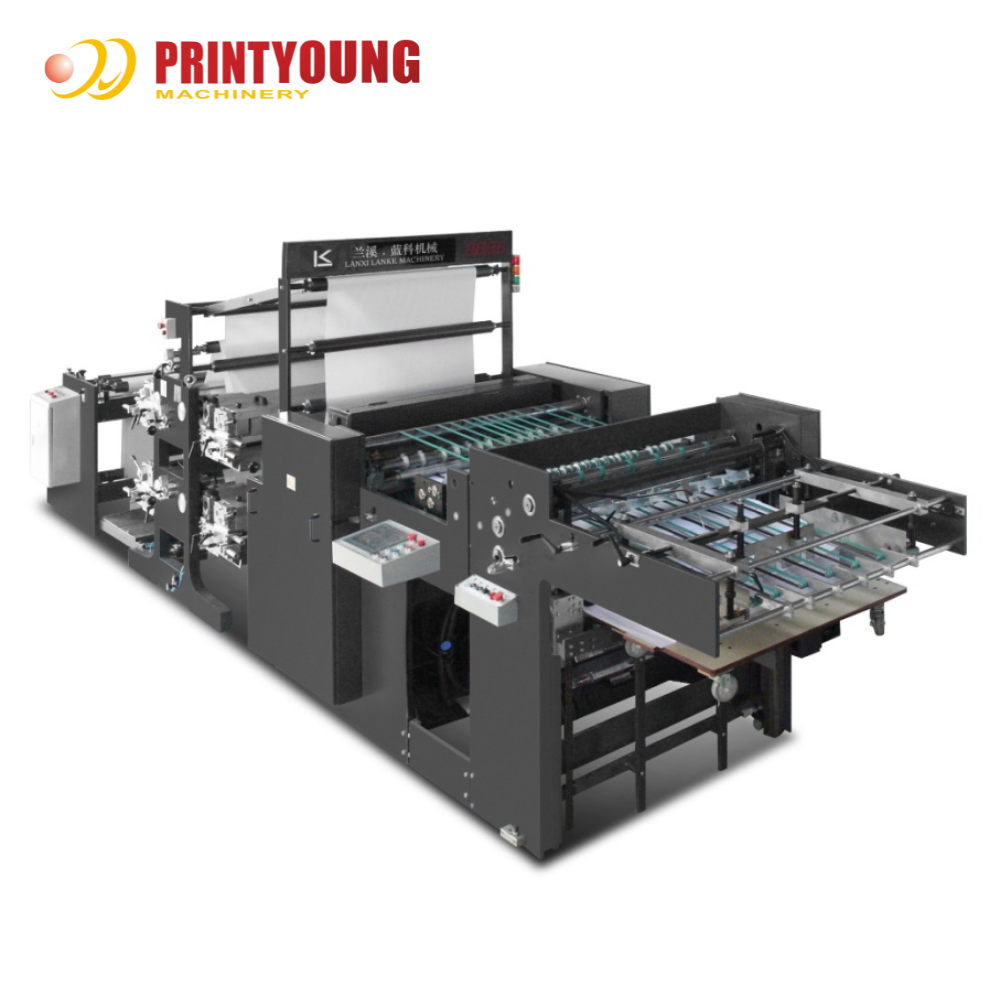

PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 0
PRY-1020A High Speed Flexo Printing Machine
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 1
Features
The machine is controlled by microcomputer,with photoelectric tracking,pneumatic-liquid linkage,human-machine interface touch screen operation,ink-soft plate printing and other high technology.The production line is ideal for printing the inner pages of this book by unrolling and flattening the roll paper,double-sided double-color flexible printing,cutting into single sheets,and collecting the paper into piles on a high platform.The operation of this machine can be completed by one captain only.
Constituent
One set of unwinding sleeves
Double-sided two-color printing
A set of cutting sleeves
A set of high-income part sets
A set of electrical control systems
Technical Parameters
The Maximum Diameter of the Roll
1300 mm
The Width of the Paper
680 ~ 1020 mm
Applicable Paper Weight
50 ~ 130 g/m²
Repeat Print Length
300 ~ 680 mm
Maximum Printing Width
1020 mm
Maximum Printing Speed
300 m/min
Slitting Specifications
300 ~ 680 mm
Total Power
30 kw
Configuration

Unwinding Part

1.Quantity of roll paper: 1pc
2.Paper roll diameter: 1300mm
3.Paper roll width: 1020mm
4.Web lifting: The motor chain lifting method is adopted
5.Tension braking: Magnetic particle braking system is adopted
6.Web clamping method: Adopt air shaft type
7.Tension control system: Fully automatic,floating roller type

Printed Parts

1.Number of process color groups,4 printing color sets,cast iron wall panels,timing belt drive.
2.Manner,single-paper,double-sided,two-colored
3.Printing format: Maximum circumference: 680mm
4.Maximum width: 1020mm
5.Printing speed: Maximum printing speed: 300m/min

Cut the Part

1.Slitting knife shaft 1 set Bed knife: Holder mounting Upper knife: Rotating knife roller + knife blade

2.Traction unit 1 set The traction rollers are steel rollers

   The pressure roller is a rubber roller
   The traction rollers are clamped with cylinders
3.Slitting accuracy
   Cutting length tolerances    +/-1mm<1000mm
   Slope tolerance                  +/-1mm/1000mm

High Yield Paper Components

1.Adopt belt drive to climb and collect vibration

PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 2
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 3
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 4
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 5
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 6
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 7
PRY-1020A Automatic High Speed 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 8
