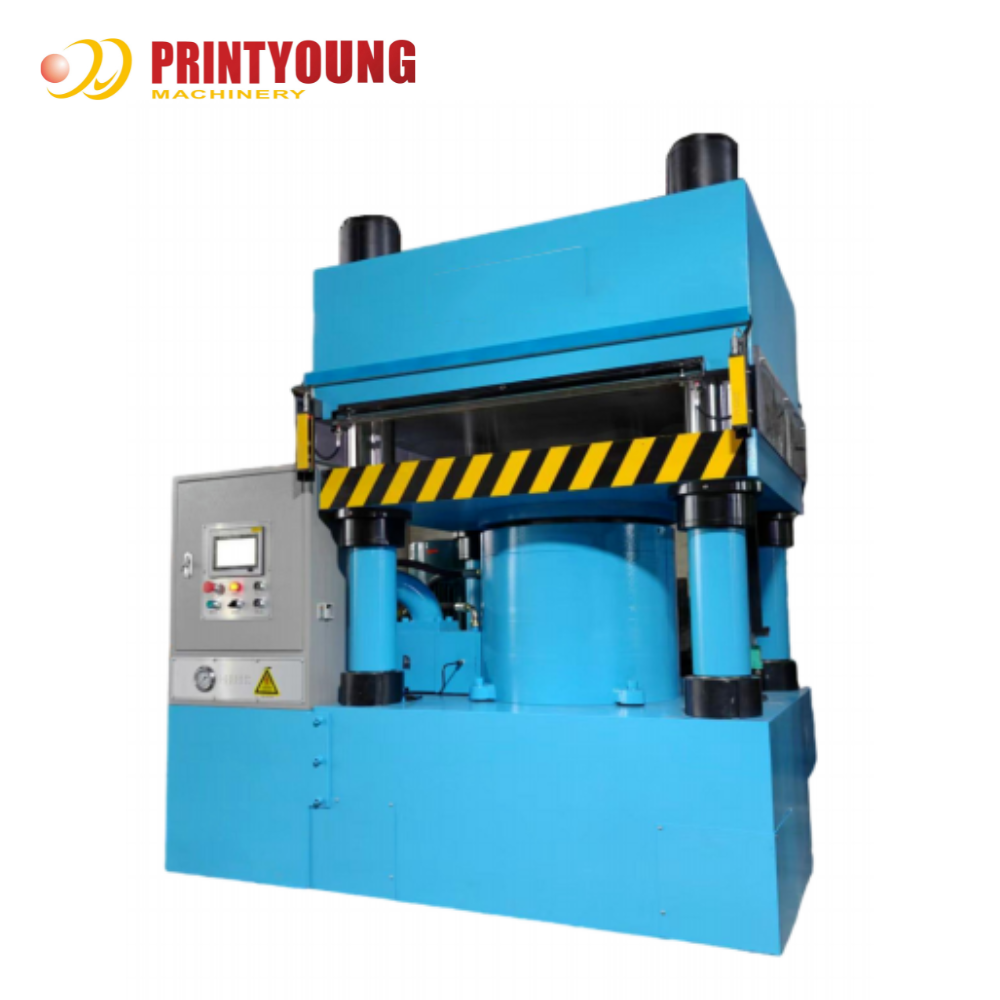

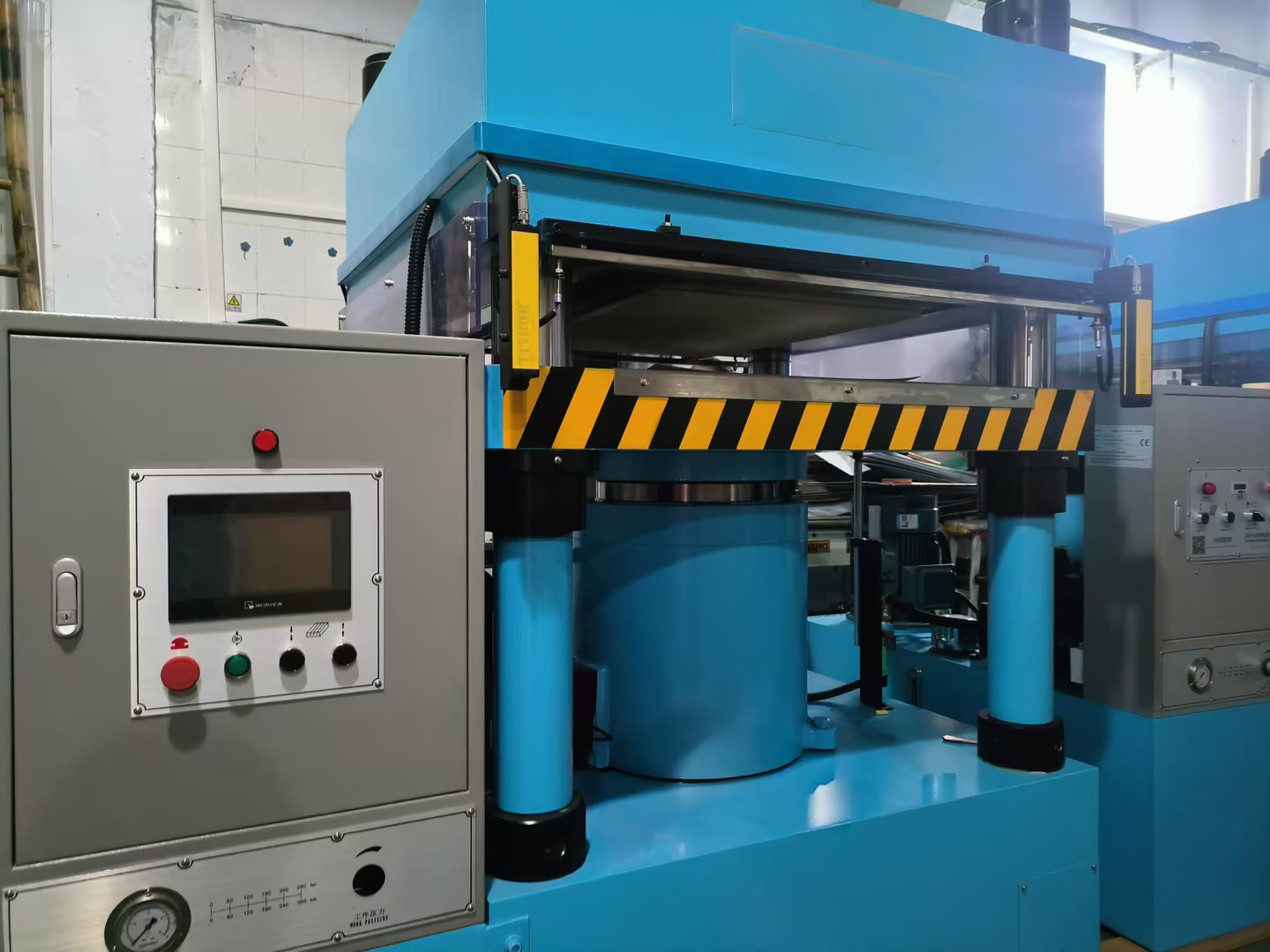

PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V

PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: PRY-200X, PRY-300X
Kuantitas min Order: 1 Set
Harga: USD 16800 ~ 21800 Set
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per Bulan
Hubungi sekarang
Model: PRY-200X, PRY-300X Nama: Pemotong puzzle 200/300 ton (tipe pindah ke atas)
Ukuran mesin: 1300*1300*1750mm, 1700*1600*2000mm Ukuran Meja Pemotongan Mati: 540*680mm, 800*900mm
Ketinggian lantai operasi: 800mm, 1300mm Tenaga Motorik: 5,5kw AC 380V 3PH 50Hz, 11kw AC 380V 3PH 50Hz
Berat mesin: sekitar 2800kg, 6500kg Kapasitas Tangki: sekitar 200L, 350L

PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 0
PRY-X Puzzle Die Cutting Making Machine
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 1
Technical Parameters
Name
200 ton puzzle cutter (move up type)
 300 ton puzzle cutter (move up type)
Model
PRY-200X
 PRY-300X
Machine Size
1300 * 1300 * 1750 mm
 1700 * 1600 * 2000 mm
Die-cutting Table Size
540 * 680 mm
 800 * 900 mm
Height of Operating Floor
800 mm
 13800 mm
Motor Power

 Power Supply
5.5kw AC 380V 3PH 50Hz
4 square live line * 3 , 2.5 square zero line * 1,1.5 square ground line *1
11kw AC 380V 3PH 50Hz
4 square live wire * 3 , 4 square zero wire * 1,1.5 square two-color wire * 1
Weight of Machine
about 2800 kg
 about 6500 kg
Tank Capacity
about 200L
 about 350L

 Function
die-cut puzzles , cardboard , games
cards , wood , MDF , 3D , PVC , plastic
die-cut puzzles , cardboard , games
cards , wood , MDF , 3D , PVC , plastic
Maximum Number
of Cutting Pieces
maximum 500 pieces of die-cutting (max. 1.9mm)2-300 pieces cut with one knife
1000pcs need to be divided into horizontal and vertical die cutting twice (1.6 -2.0mm max)
Cutable Thickness of Paper Puzzles(General Range)
0.5 ~ 2.0 mm (specific by the production mold,product material decision)
 Thickness: 2mm, 3mm - 6mm - MDF, plastic, etc.
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 2
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 3
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 4
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 5
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 6
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 7
PRY-X Frame Type Professional Jigsaw Puzzle Die Cutting Machine with Motor & Engine 380V 8
