Name: ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: ZX-800
Price: 23500 USD
Availability: InStock

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine

Informasi Dasar

Tempat asal:	Cina
Nama merek:	PRINTYOUNG
Sertifikasi:	CE
Nomor model:	ZX-800

Kuantitas min Order:	1 Set
Harga:	USD 23500 Set
Waktu pengiriman:	30 hari kerja
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	30 set per Bulan

Hubungi sekarang

Kapasitas Produksi:	15 ~ 20 kali/menit	Ukuran kertas:	300*250mm
<i>Max.</i> <b>Maks.</b> <i>Box Size</i> <b>Ukuran Kotak</b>:	250150100mm	<i>Min.</i> <b>Min.</b> <i>Box Size</i> <b>Ukuran Kotak</b>:	9011023mm
Tegangan E-power:	380V 50HZ	Bahan yang Cocok:	Kertas Dilapisi PE
Ketebalan Kertas:	200 ~ 300 gram/m²	Kekuatan Total:	6 kw

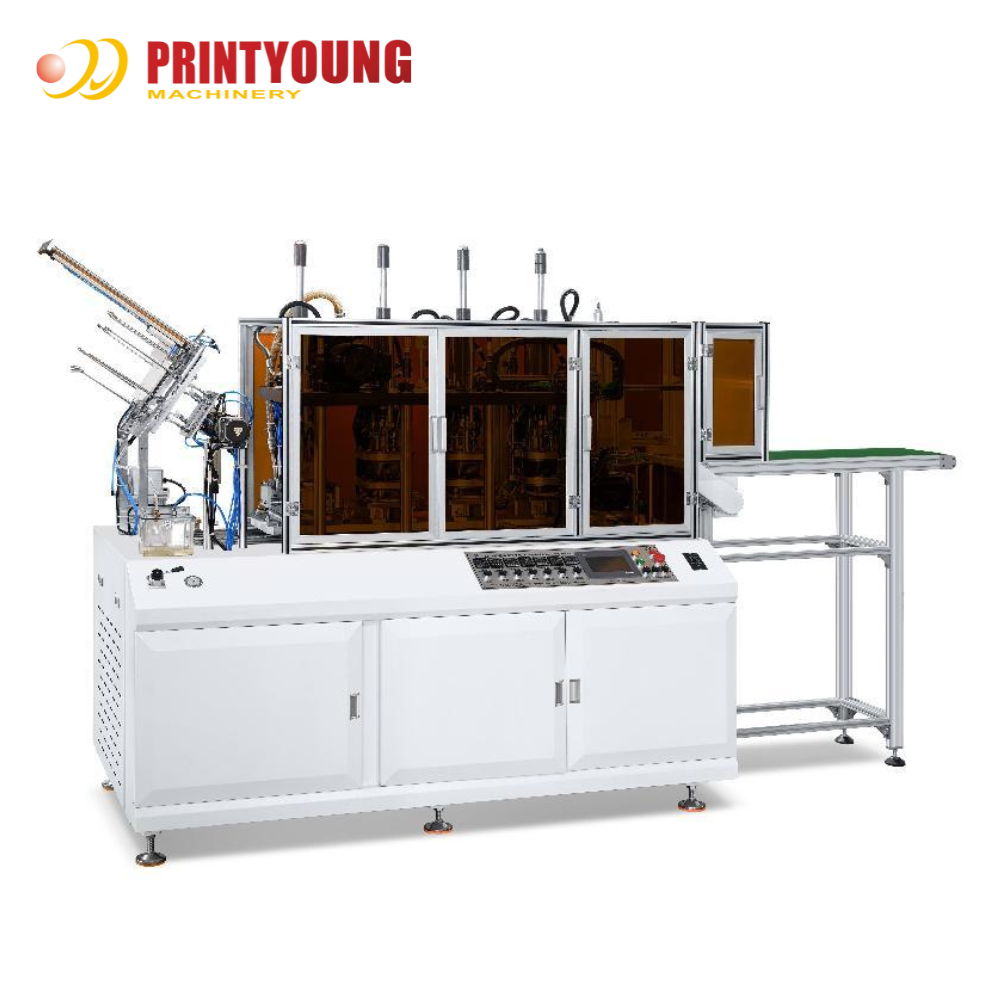

ZX-800 Automatic Square Bowl Forming Machine

Features

Automatic square bowl forming machine is a multi-station forming machine.It uses a microcomputer to control the servo system to automatically take paper,full servo forming,curling,counting and collecting continuous processes. Compared with traditional automatic paper product forming equipment,this equipment recombines the principles of pneumatic and mechanical combination,and has the advantages of higher production speed,more stable performance,safer operation,more convenient maintenance and more humanized structural design.

Technical Parameters

Type	ZX-800
Production Capacity	15 ~ 20 times/min (actual production according to product size)
Paper Size	300 * 250 mm
Max. Box Size	250 * 150 * 100 mm
Min. Box Size	90 * 110 * 23 mm
E-power Voltage	380V 50Hz (can be changed)
Suitable Material	PE coated paper
Paper Thickness	200 ~ 300 g/m²
Total Power	6 kw
Total Weight	700 kg
Overall Dimension	2100 * 750 * 1800 mm
Working Air Source	air pressure 0.2 ~ 0.3 Mpa (need to buy compressor)
