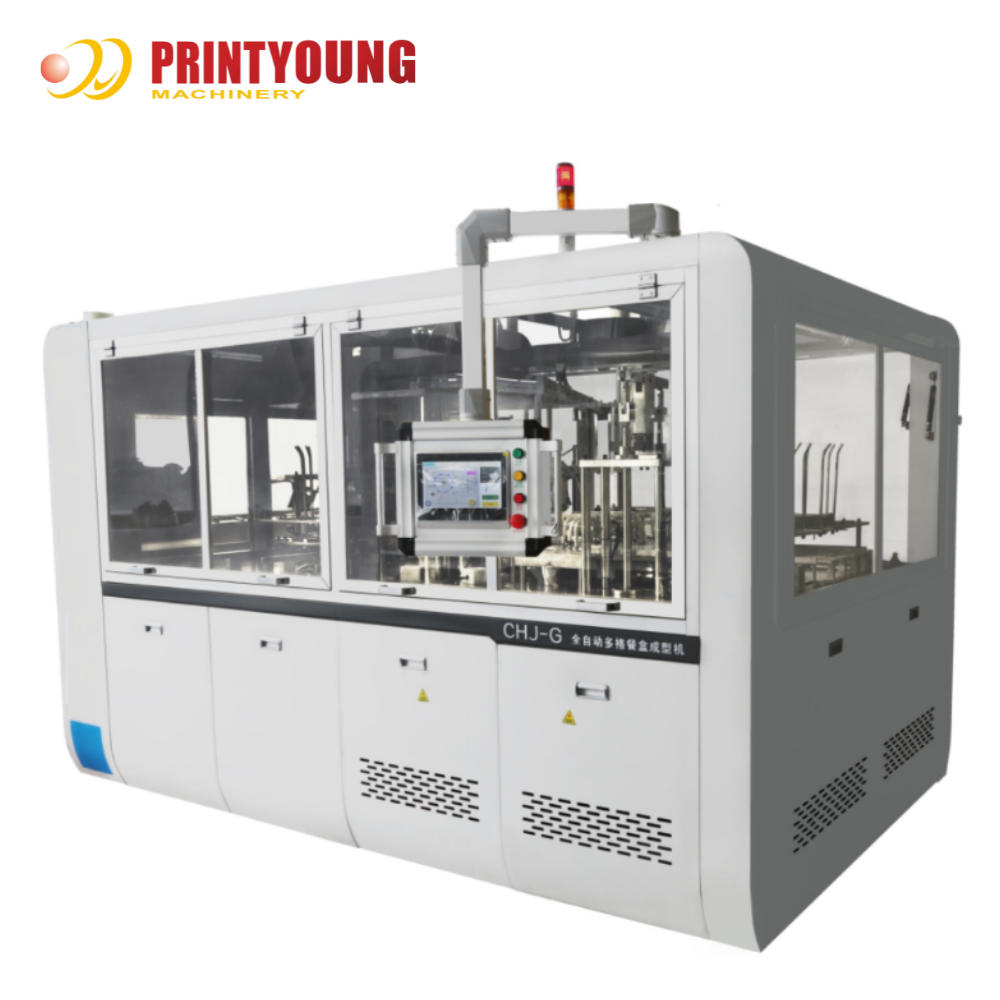

CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine

CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: CHJ-G
Kuantitas min Order: 1 Set
Harga: USD 48000 Set
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per Bulan
Hubungi sekarang
Jenis: CHJ-G Kapasitas Produksi: 30 ~ 35 buah/menit
<i>Max.</i> <b>Maks.</b> <i>Box Size</i> <b>Ukuran Kotak</b>: 215*165*50mm Bahan yang Cocok: 200 ~ 400 g/m² (kertas berlapis PE)
Kekuatan Total: 12 kw Berat Total: 4 T
Dimensi Keseluruhan: 3000*2400*2200mm Sumber Udara yang Bekerja: Tekanan udara 0,4 ~ 0,5 Mpa (Perlu membeli kompresor)

CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 0
CHJ-G Multi-cell Divisions Box Forming Machine
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 1
Features
1.Mechanical rotary disc transmission,speed,energy saving,stability,simple operation,microcomputer detection,domestic advanced technology products.
2.Through automatic paper feeding,heating (with built-in hot air generating device),hot pressing molding,automatic counting collection,microcomputer salt control and other standard processes,it is used for the production of multi-grid disposable paper good boxes,paper packaging boxes,food packaging boxes,etc.
Technical Parameters
Type
CHJ-G
Production Capacity
30 ~ 35 pcs/min
Max. Box Size
215 * 165 * 50 mm
Suitable Material
200 ~ 400 g/m² (PE coated paper)
Total Power
12 kw
Total Weight
4 t
Overall Dimension
3000 * 2400 * 2200 mm
Working Air Source
air pressure 0.4 ~ 0.5 Mpa (need to buy compressor)
Applications
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 2
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 3
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 4
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 5
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 6
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 7CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 8
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 9CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 10
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 11
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 12
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 13
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 14
CHJ-G Fully Automatic Multi-grid PE Coated Paper Meal Box Forming Machine 15
