Rumah ProdukMesin Pengolah KertasCG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: CG-338
Kuantitas min Order: 1 set
Harga: USD 1200 Set
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per Bulan
Hubungi sekarang
Maks. Ukuran Kertas: 330*3000mm Meningkatkan Ketebalan: 80～400 gram
Ketebalan Garis Putus-putus: 80～250 gram Meningkatkan Penyimpanan Data: 32 kelompok satu lembar
Meningkatnya Jumlah: hingga 32 buah Meningkatkan Akurasi: ± 0,1 mm
Kecepatan Indentasi (Indentasi A4): 4500/jam Mode Pengumpanan Kertas: pemberian makanan hisap

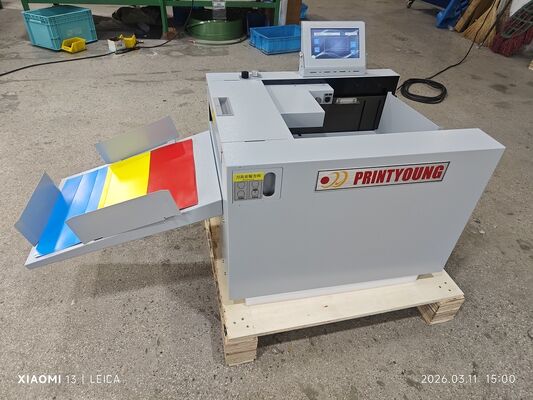

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 0
CG-338 Automatic Suction Paper Creasing Machine

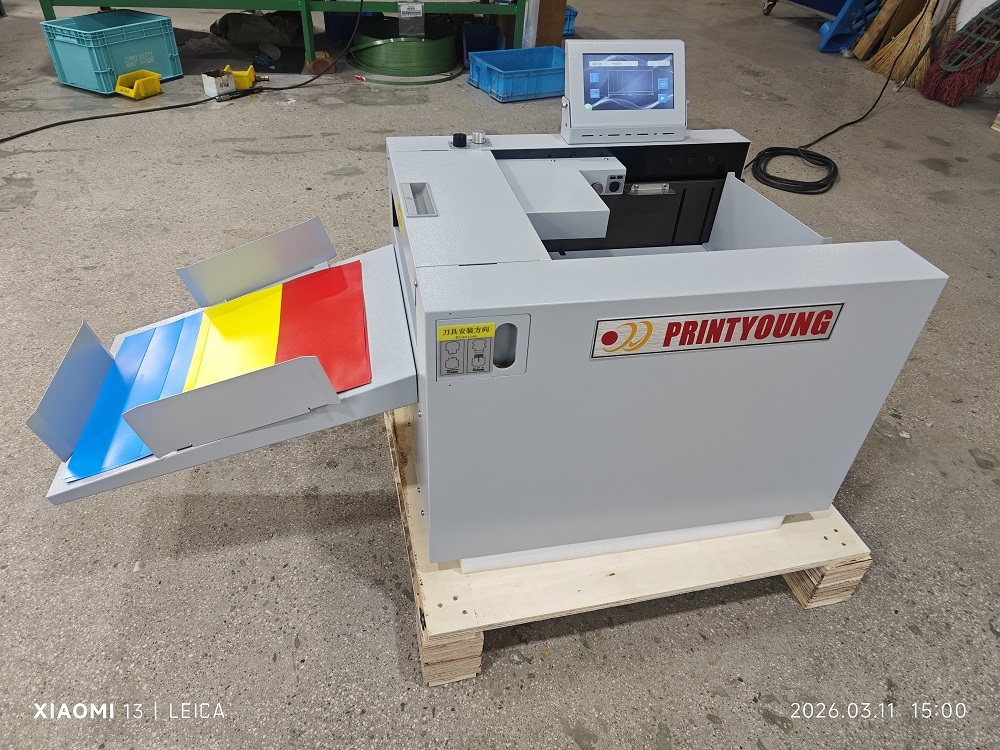

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 1
Features
1. This machine uses industrial polyurethane cushion,which makes the indentation action more stable and the indentation line clearer.
2. The unique concave-convex indentation groove design can effectively change the direction of paper fiber and make the indentation line fuller.
3. The indentation strip adopts 6-series Al-mg-Sialloy,and the hardness reaches HB90-100after aging treatment. The knife blade is not deformed and the indentation effect is not out of shape for 3 million times of enterprise fatigue test.
4. It is the first to develop and use AC motor as the main motor in the market so that the mechanical performance of the mainframe does not decline and is stable fora long time.
5. Class2 PCB process and system self-checking and self-correcting process make the indentation accurate and stable!
6. Polyurethane knife gaskef for tooth line blade imported from Japan makes the sawtooth line uniform,uniform,easy to tear and break.
Technical Parameters
Model
CG-338
Max. Paper Size
330 * 3000 mm
Increasing Thickness
80～400 g
Dashed Line Thickness
80～250 g
Increasing Data Storage
32 groups of single sheet
Increasing Number
up to 32 pieces
Increasing Accuracy
± 0.1 mm
Indentation Speed(A4 Indentation)
4500/h
Paper Feeding Mode
suction feeding
Operation Interface
button touch screen
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 2
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 3
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 4
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 5
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 6
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 7
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 8
