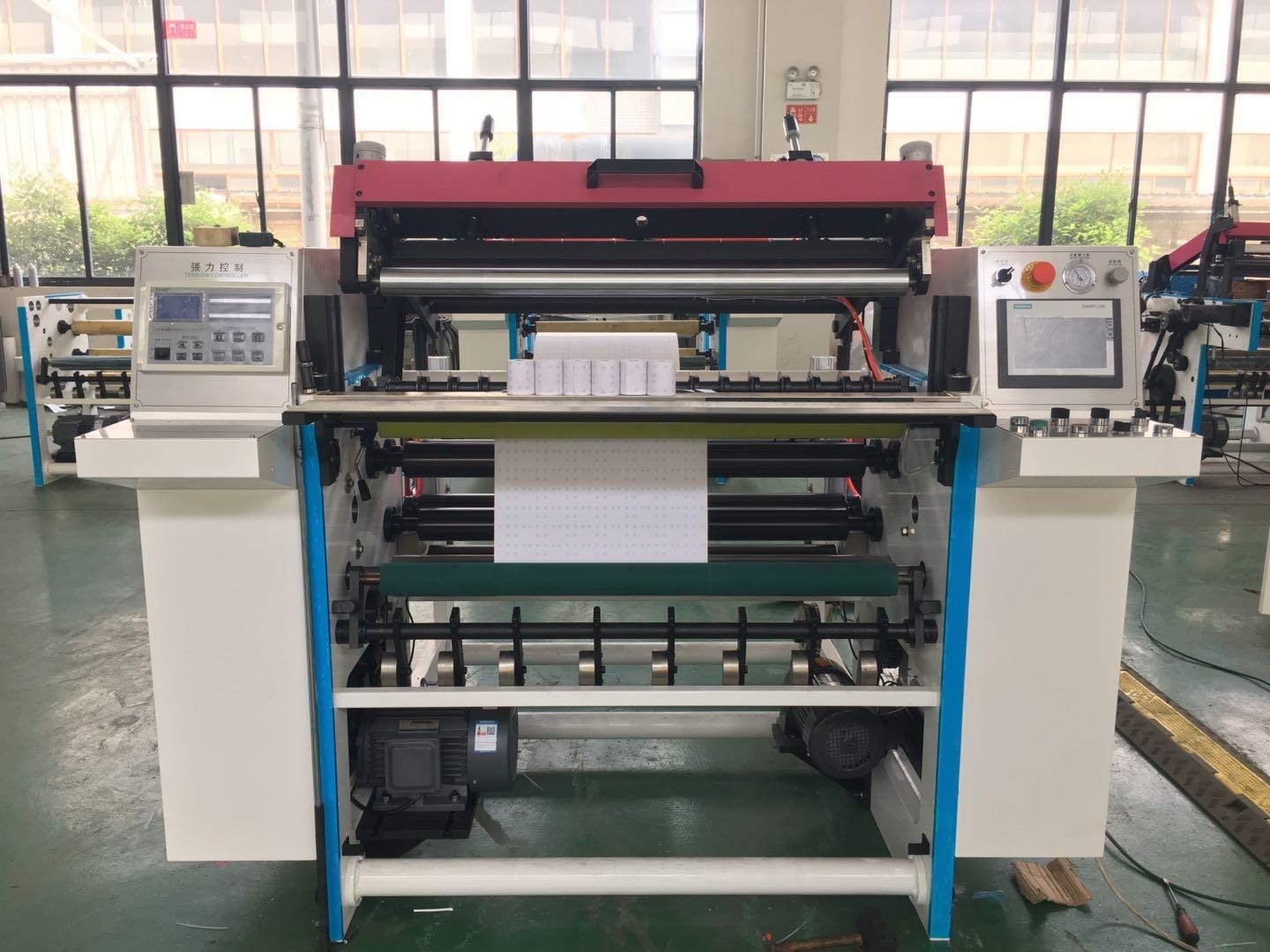

PRY-1100 Thermal Paper Slitting and Rewinding Machine

PRY-1100 Thermal Paper Slitting and Rewinding Machine
PRY-1100 Thermal Paper Slitting and Rewinding Machine
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: Cungkil-1100
Kuantitas min Order: 1 SET
Harga: USD 20000 Set
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per bulan
Hubungi sekarang
Maks. Lebar Pelepasan: 1100 mm Maks. Diameter Pelepasan: 1000 mm
Maks. Diameter Pemutaran Ulang: 270 mm Minimal. Lebar menggorok: 25mm
<i>Machine Max.</i> <b>Mesin Maks.</b> <i>Speed</i> <b>Kecepatan</b>: 110 m/mnt Kekuatan utama: 2,95kw

PRY-1100 Thermal Paper Slitting and Rewinding Machine 0
PRY-1100 Thermal Paper Slitter Rewinder
PRY-1100 Thermal Paper Slitting and Rewinding Machine 1
Features
Unwinding Section
Automatic pneumatic lift-up loading system
3’’(76mm)air expanding shaft
Floating roller constant tension
Slitting Section
Disc cutter
Disc cutter Assembly adopt the cam self-locking
Cutter with adjustable and moveable blade base
Meter counter
Rewinding Section
0.5”,1”,1.5” or as your request
Center rewinding technology
Pressure roller
Automatic tucker
Controlling Section
Siemens PLC & HMI from Germany
All the parameters are displayed on the monitor
Low voltage electrical appliances all from Schneider
Trimmed Waste Edge
Edge waste blower with expulsion tube
Technical Parameters
Max. Unwinding Width
1100 mm
Max. Unwinding Diameter
1000 mm
Max. Rewinding Diameter
270 mm
Min. Slitting Width
25 mm
Machine Max. Speed
110 m/min
Main Power
2.95 kw
Unwinding Shaft
3’’ (76mm) air eapanding shaft
Rewinding Shaft
0.5’’, 1’’ or as your request
Weigth
1800 kg
Demension
2800 * 1700 * 1700 mm
Optional
Optional 1:Automatic Cutting & Gluing Device(Payable)
PRY-1100 Thermal Paper Slitting and Rewinding Machine 2PRY-1100 Thermal Paper Slitting and Rewinding Machine 3
PRY-1100 Thermal Paper Slitting and Rewinding Machine 4PRY-1100 Thermal Paper Slitting and Rewinding Machine 5
Optional 2:Automatic Paper Core Loading Machine
PRY-1100 Thermal Paper Slitting and Rewinding Machine 6
Capacity
0.13/m³
Min. Pipe Diameter
12 mm
Max. Pipe Diameter
25 mm
Working Speed
15 times/min
Power
0.7 kw
Size
1000 * 1000 * 1200 mm
Weight
350 kgs
Option 3:Automatic Roll Cut Off & Hammer Unit
PRY-1100 Thermal Paper Slitting and Rewinding Machine 7PRY-1100 Thermal Paper Slitting and Rewinding Machine 8
PRY-1100 Thermal Paper Slitting and Rewinding Machine 9PRY-1100 Thermal Paper Slitting and Rewinding Machine 10
Option 4:JT-550A Shrink Film Packing Machine with Conveyor
PRY-1100 Thermal Paper Slitting and Rewinding Machine 11
Max. Wrapping Size
(L+H) ≤ 560mm , (W+H) ≤ 550mm , (H) ≤ 130mm
Max. Sealing Size
(L)650 * (W)600 mm
Wrapping Speed
10 ~ 20 packs/min
Power
220V / 50Hz 1.3kw
Air
5.5 kg/cm³
Machine Weight
540 kg
Dimentions
2050 * 1000 * 1600 mm

Application

It is suitable for mass shrink packaging of stationery,food,cosmetics,pharmacy,hardware and other industries.It adopts imported PLC automatic program control,easy to operate,has safety protection and alarm functions,and effectively prevents miscut packaging.Equipped with imported horizontal and vertical detection photoelectric,easy to switch and choose.JT-450A also has a close connection function,which is specially designed for packaging small products.The whole set of machines can be connected to the production line for unmanned operation.
PRY-1100 Thermal Paper Slitting and Rewinding Machine 12PRY-1100 Thermal Paper Slitting and Rewinding Machine 13

Specification

This machine is a fully automatic L-shaped sealing and cutting and shrink packaging equipment,which can be connected to various fully automated packaging assembly lines.
The built-in Omron PLC programmable controller has safety protection and fault alarm functions,which improves the stability of the machine.
The sealing and cutting knife adopts American DuPont Teflon anti-stick coating,and the sealing will not crack or coking;the sealing and cutting knife has an automatic protection function to prevent accidental cutting of the packaging.
Adjust the height of the film guide device and the feeding and conveying platform,and it is possible to package products of different widths and heights without changing the mold and bag maker.
Automatic feeding,the length of the bag is automatically controlled by the combination of electric eye and timer;equipped with a waste induction motor,it can automatically take up waste edges.
Equipped with an independent and arbitrarily movable pinhole venting device to make the packaging effect more beautiful.
Equipped with American Bonner brand detection photoelectric,one set of horizontal and vertical detection,switch options to pack thinner and smaller items.
Using Omron digital display temperature controller,the temperature can be set at will,and the sealing and cutting temperature is extremely sensitive and accurate.
JT-550A has the function of tightly connecting the feeding and discharging conveyor belts, which can pack smaller items and make the packaging range wider.
PRY-1100 Thermal Paper Slitting and Rewinding Machine 14
PRY-1100 Thermal Paper Slitting and Rewinding Machine 15
PRY-1100 Thermal Paper Slitting and Rewinding Machine 16PRY-1100 Thermal Paper Slitting and Rewinding Machine 17
PRY-1100 Thermal Paper Slitting and Rewinding Machine 18PRY-1100 Thermal Paper Slitting and Rewinding Machine 19
PRY-1100 Thermal Paper Slitting and Rewinding Machine 20PRY-1100 Thermal Paper Slitting and Rewinding Machine 21
PRY-1100 Thermal Paper Slitting and Rewinding Machine 22PRY-1100 Thermal Paper Slitting and Rewinding Machine 23
PRY-1100 Thermal Paper Slitting and Rewinding Machine 24
PRY-1100 Thermal Paper Slitting and Rewinding Machine 25
PRY-1100 Thermal Paper Slitting and Rewinding Machine 26
PRY-1100 Thermal Paper Slitting and Rewinding Machine 27
PRY-1100 Thermal Paper Slitting and Rewinding Machine 28
