Rumah ProdukMesin Pengolah KertasPRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm

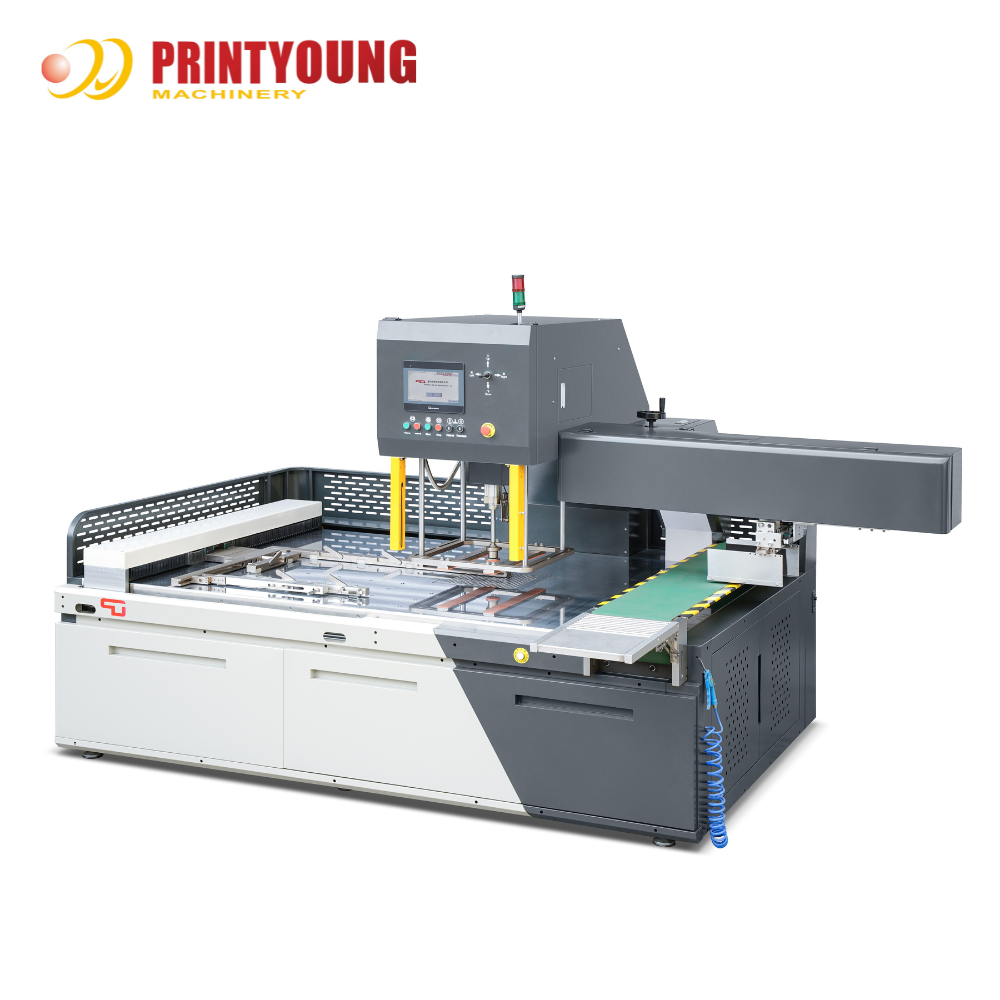

PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm

PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: PRY-1080TR
Kuantitas min Order: 1 set
Harga: USD 22000 Set
Kemasan rincian: Mengadopsi kemasan kelembaban dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh dan
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per bulan
Hubungi sekarang
Luas Lantai Mesin: 3600*2050*1950mm Max. Ukuran lembar: 1080*780mm
Min. Ukuran lembar: 650*450mm <i>Max.</i> <b>Maks.</b> <i>Pile Height</i> <b>Tinggi tumpukan</b>: 100mm
Minimal. Tinggi Tumpukan: 40mm Ukuran Blanking Maks.: 450*450mm
Min. Ukuran blanking: 30*30mm Maks. Kecepatan Kerja: 20 siklus/menit
Tekanan: 70 batang Rentang Pegangan Lengan Robot: 30~300mm
Berat Pegangan Lengan Robot: 0,05 ~ 1,8 kg Kecepatan Putar / Rute: 10 ~ 80mm/detik; 180 derajat

PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 0
PRY-1080TR Paper Stripping Machine
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 1
Features
* Fully Automatic.
* Single head blanking system for running sheets with nested blanks.
* 180-degree rotating frame to blank the products of opposite layout easily.
* Robot arm picks products automatically after each cycle is completed.
* Heavy-duty,quality-built single support base.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement.
* Operator friendly touch screen for quick and simple programing.
* Can be customized according to customers’ job demand.
* Adopts servo motor,double guide rail and ball screw which makes accuracy.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* The complete machine takes much less space and is equipped with PLC,touch screen interface in operation.
Technical Parameters
Machine Floor Area
3600 * 2050 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
450 * 450 mm
Min. Blanking Size
30 * 30 mm
Max. Work Speed
20 cycles/minute
Pressure
70 bar
Robot Arm Grip Range
30 ~ 300 mm
Robot Arm Grip Weight
0.05 ~ 1.8 kgs
Rotate Speed / Route
10 ~ 80 mm/second ; 180 degrees
Total Power
5.4kw 380V
Net Weight
2500 kgs
Gross Weight
2800 kgs
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 2
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 3
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 4
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 5
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 6
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 7
PRY-1080TR Automatic Paper Waste Stripping Machines with Rotary Head & Robot Arm 8

Label:

Dia 320mm Kertas Dapat Membuat Mesin

5pcs / Min Kertas Dapat Membuat Mesin

200mm Tinggi Kertas Dapat Membuat Mesin
