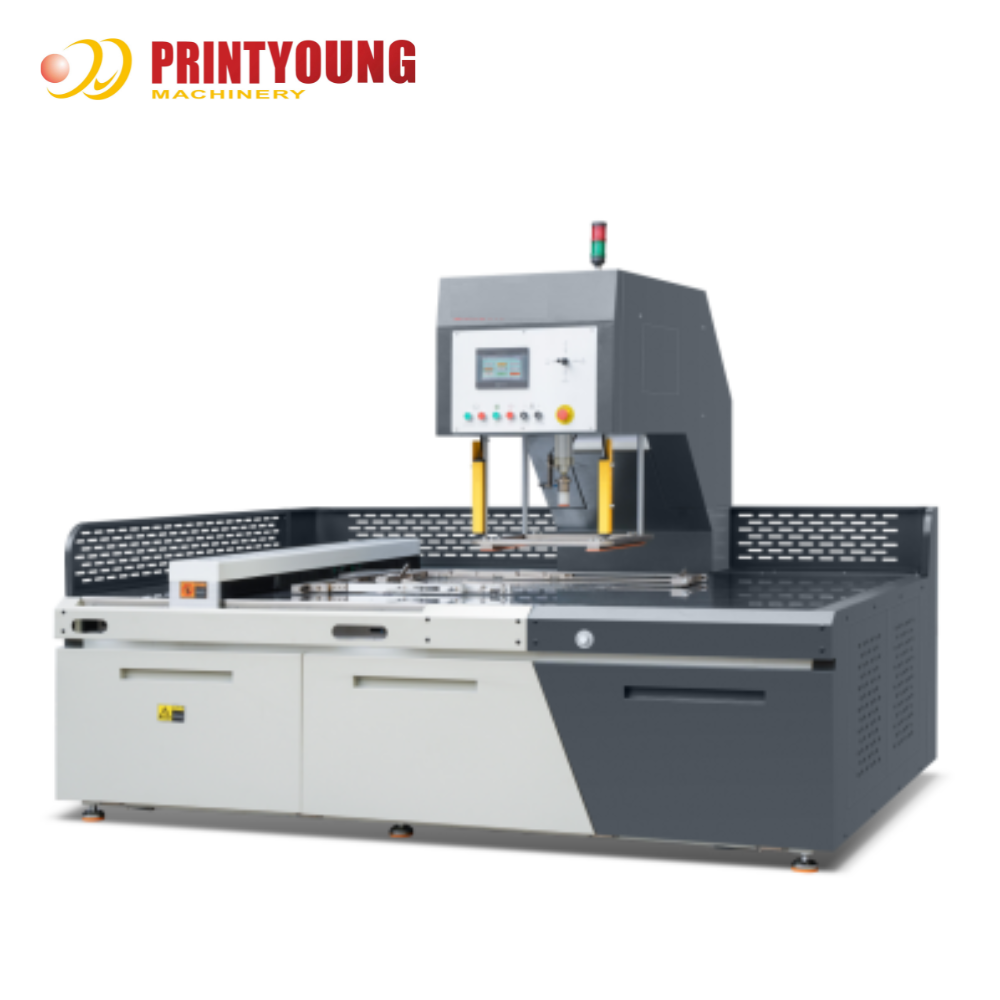

PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame

PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: Cungkil-1080T
Kuantitas min Order: 1 set
Harga: USD 19000 Set
Kemasan rincian: Mengadopsi kemasan kelembaban dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh dan
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per bulan
Hubungi sekarang
Max. Ukuran lembar: 1080*780mm Min. Ukuran lembar: 650*450mm
<i>Max.</i> <b>Maks.</b> <i>Pile Height</i> <b>Tinggi tumpukan</b>: 100mm Minimal. Tinggi Tumpukan: 40mm
Ukuran Blanking Maks.: 450*450mm Min. Ukuran blanking: 30*30mm
Maks. Kecepatan Kerja: 20 siklus/menit Tekanan: 8 Batang
Kecepatan Putar / Rute: 10 ~ 80mm/detik; 180 derajat kekuatan total: 4,5kw

PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 0
PRY-1080T Paper Stripping Machine with Rotary Frame
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 1
Features
* Fully Automatic.
* Single head blanking system for running sheets with nested blanks.
* 180-degree rotary press frame for products of opposite layout.
* Heavy-duty,quality-built single support base.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
* Operator friendly touch screen for quick and simple programing.
* Can be customized according to customers’ job demand.
* Servo motor,double guide rail and ball screw ensure accuracy.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* The complete machine takes much less space and is equipped with PLC,touch screen interface in operation.
* Used to replace manual labor,improving product quality and enterprise profit.
Technical Parameters
Machine Floor Area
3000 * 2050 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
450 * 450 mm
Min. Blanking Size
30 * 30 mm
Max. Work Speed
20 cycles/minute
Pressure
8 bar
Rotate Speed / Route
10 ~ 80 mm/second ; 180 degrees
Total Power
4.5 kw
Net Weight
2500 kgs
Gross Weight
2800 kgs
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 2
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 3
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 4
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 5
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 6
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 7
PRY-1080T Automatic Single Head Paper Waste Stripping Machines with Rotary Frame 8
