Rumah ProdukMesin Pengolah KertasPRY-1080B Automatic Paper Waste Stripping Machines with Double Heads

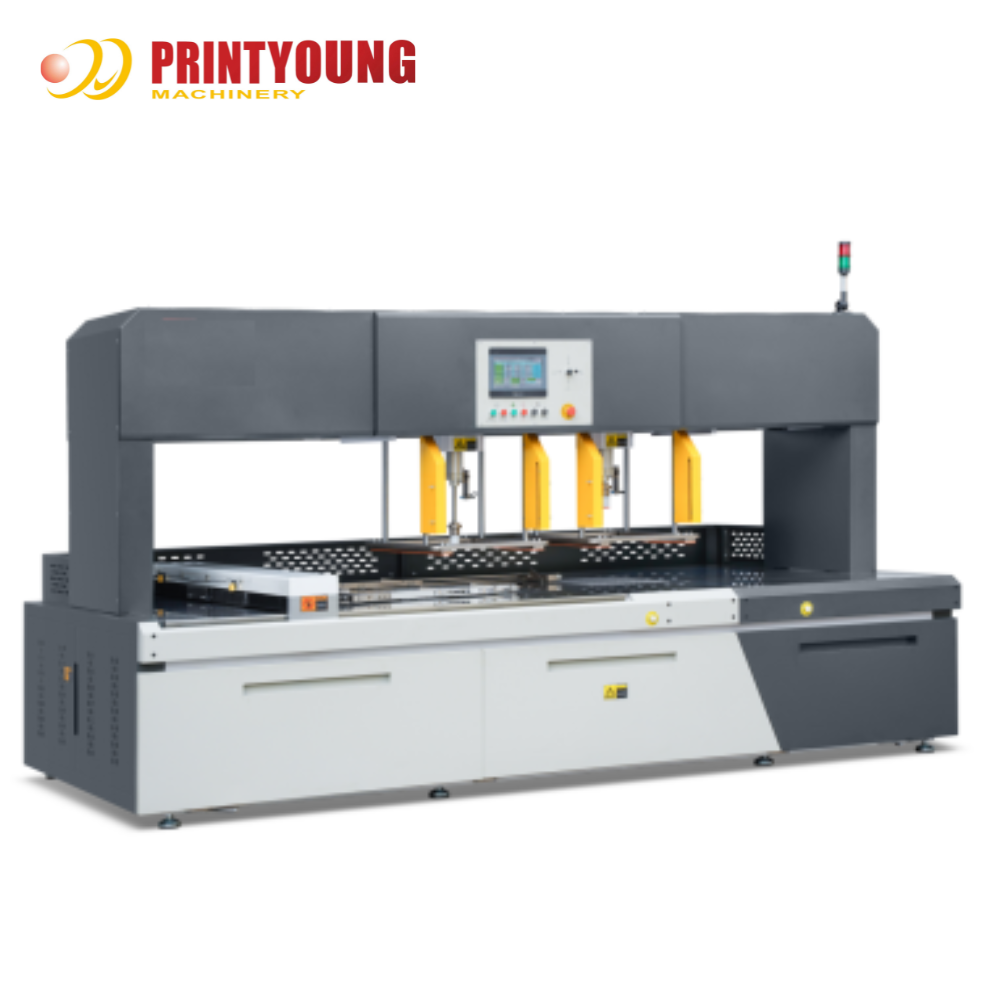

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: PRY-1080B
Kuantitas min Order: 1 set
Harga: USD 18500 Set
Kemasan rincian: Mengadopsi kemasan kelembaban dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh dan
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per bulan
Hubungi sekarang
Luas Lantai Mesin: 3800*1850*1950mm Max. Ukuran lembar: 1080*780mm
Min. Ukuran lembar: 650*450mm <i>Max.</i> <b>Maks.</b> <i>Pile Height</i> <b>Tinggi tumpukan</b>: 100mm
Minimal. Tinggi Tumpukan: 40mm Ukuran Blanking Maks.: 500 * 750 mm
Min. Ukuran blanking: 30*30mm Maks. Kecepatan: 20 siklus/menit
Tekanan: 70 batang kekuatan total: 5kw 380V

PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 0
PRY-1080B Paper Stripping Machine with Double Heads
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 1
Features
* Fully Automatic.
* Dual-head blanking system for running sheets with nested blanks.
* Heavy-Duty,quality-built gantry structure main frame.
* Frame style support base for precision blanking to ensure damage free loads.
* Operator friendly touch screen for quick and simple programing.
* Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement.
* Big-size working area easy for doing jobs of big-size blanking,which can be customized according to customers’ demand.
* Automatic lubrication system with timely maintenance extends the service life of the machine.
* Hydraulic system with inserted motor and oil temperature cooling fan ensures constant and big working pressure.
* The complete machine is equipped with PLC,and with a touch screen interface in operation.
Technical Parameters
Model
PRY-1080B (double work unit)
Machine Floor Area
3800 * 1850 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
500 * 750 mm
Min. Blanking Size
30 * 30 mm
Max. Speed
20 cycles/minute
Pressure
70 bar
Total Power
5kw 380V
Net Weight
3300 kgs
Gross Weight
3500 kgs
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 2
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 3
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 4
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 5
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 6
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 7
PRY-1080B Automatic Paper Waste Stripping Machines with Double Heads 8
