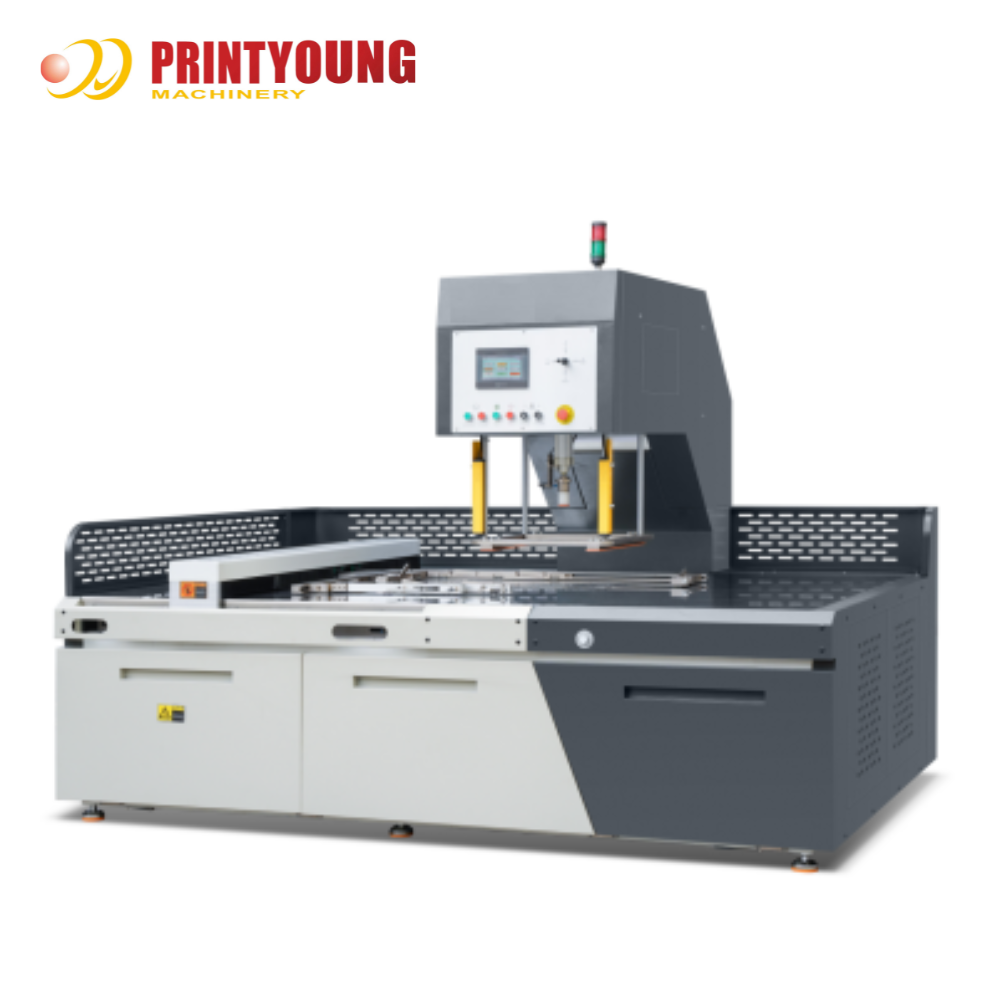

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: PRY-1080S
Kuantitas min Order: 1 set
Harga: USD 15000 Set
Kemasan rincian: Mengadopsi kemasan kelembaban dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh dan
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per bulan
Hubungi sekarang
Luas Lantai Mesin: 2760*2050*1950mm Max. Ukuran lembar: 1080*780mm
Ukuran lembar min: 650*450mm <i>Max.</i> <b>Maks.</b> <i>Pile Height</i> <b>Tinggi tumpukan</b>: 100mm
Minimal. Tinggi Tumpukan: 40mm Ukuran Blanking Maks.: 450*450mm
Min. Ukuran blanking: 30*30mm Maks. Kecepatan: 20 siklus/menit
Tekanan: 8 Batang kekuatan total: 4,5kw
Berat Bersih: 2300 kg berat kotor: 2600 KGS

PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 0
PRY-1080S Paper Stripping Machine with Single Head
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 1
Features
1.Fully Automatic;
2.Single head blanking system for running sheets with nested blanks;
3.Heavy-duty,quality-built single support base;
4.Equipped with high-precision linear bearing rails and servo motors for smooth and precise movement;
5.Operator-friendly touch screen for quick and simple programing;
6.Can be customized according to customers’ job demand;
7.Adopts servo motor,double guide rail and ball screw ensure accuracy;
8.Automatic lubrication system with timely maintenance extends the service life of the machine;
9.Hydraulic system with inserted motor and oil temperature cooling fan(power 3.75kw) ensures constant and big working pressure;
10.The complete machine takes much less space and is equipped with PLC,touch screen interface in operation;
11.Used to replace manual labor,improving product quality and enterprise profit.
Technical Parameters
Model
PRY-1080S (single work unit)
Machine Floor Area
2760 * 2050 * 1950 mm
Max. Sheet Size
1080 * 780 mm
Min. Sheet Size
650 * 450 mm
Max. Pile Height
100 mm
Min. Pile Height
40 mm
Max. Blanking Size
450 * 450 mm
Min. Blanking Size
30 * 30 mm
Max. Speed
20 cycles/minute
Pressure
8 bar
Total Power
4.5 kw
Net Weight
2300 kgs
Gross Weight
2600 kgs
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 2
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 3
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 4
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 5
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 6
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 7
PRY-1080S Automatic Paper Waste Stripping Machines with Single Head 8
