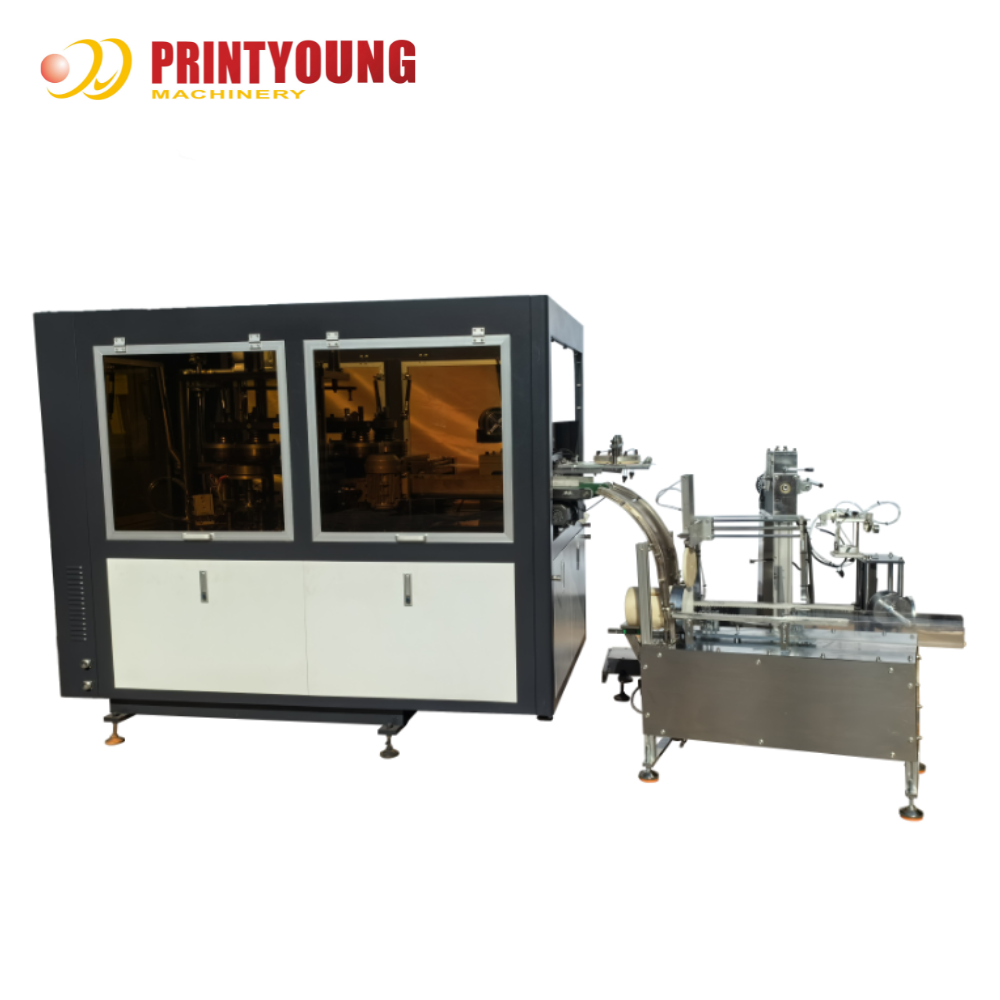

FG-50 Big Paper Bowl Cup Lid Forming Machine

FG-50 Big Paper Bowl Cup Lid Forming Machine
FG-50 Big Paper Bowl Cup Lid Forming Machine
Informasi Dasar
Tempat asal: Tiongkok
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: FG-50
Kuantitas min Order: 1 set
Harga: USD 26500 Set
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per bulan
Hubungi sekarang
Kertas yang cocok: kertas berlapis PE satu & dua sisi, kertas berlapis mengkilap Berat kertas: 250 ~ 350 gsm
Diameter tutup: 100~200mm Tinggi tutup: 10~15mm
kecepatan: 40 ~ 60 buah/menit Sumber Daya: AC 380V 3 fase, 50Hz
Kekuatan total: 15 kw Berat: 4000 kg
Ukuran Mesin: 2800*2200*2200mm Persyaratan udara: konsumsi 0,02 m³/menit, tekanan : 0,5 MPa

FG-50 Big Paper Bowl Cup Lid Forming Machine 0
FG-50 Big Paper Bowl Lid Forming Machine
FG-50 Big Paper Bowl Cup Lid Forming Machine 1
Features
FG-50 paper lid machine is our patent machine,which make paper lid,paper cover.
It’s an automatic machine with the functions:
Automatic roll paper feed,creasing(make the forming guide line),emboss(can make emboss ,logo),cross cut(make hole for straw),punching(punch the roll paper to lid open disc),auto feed disc to mold,heating,folding,knurling,and discharge,with convey and counter for collection.
Advantage:
* Patent equipment,high speed.
* Feed roll paper.
* Auto creasing(guide line).
* Auto emboss(logo and shape on lid top,also make cross cut).
* Auto punching(cut roll paper to lid disc).
* Lid made by one paper disc,save cost.
* PLC control + servo motor feed paper.
* Open cam + shaft + cam + gear control movement,stable and reliable.
Technical Parameters
Suitable Paper
one & two side PE coated paper,glossy coated paper
Paper Weight
250 ~ 350 gsm
Lid Diameter
100 ~ 200 mm
Lid Height
10 ~ 15 mm
Speed
40 ~ 60 pcs/minute
Power Source
AC 380V 3-phase , 50Hz
Total Power
15 kw
Weight
4000 kg
Machine Size
2800 * 2200 * 2200 mm
Air Requirement
consumption 0.02 m³/minute , pressure : 0.5 MPa
FG-50 Big Paper Bowl Cup Lid Forming Machine 2
FG-50 Big Paper Bowl Cup Lid Forming Machine 3
FG-50 Big Paper Bowl Cup Lid Forming Machine 4
FG-50 Big Paper Bowl Cup Lid Forming Machine 5
FG-50 Big Paper Bowl Cup Lid Forming Machine 6
FG-50 Big Paper Bowl Cup Lid Forming Machine 7
FG-50 Big Paper Bowl Cup Lid Forming Machine 8

Label:

Dia 320mm Kertas Dapat Membuat Mesin

5pcs / Min Kertas Dapat Membuat Mesin

200mm Tinggi Kertas Dapat Membuat Mesin
