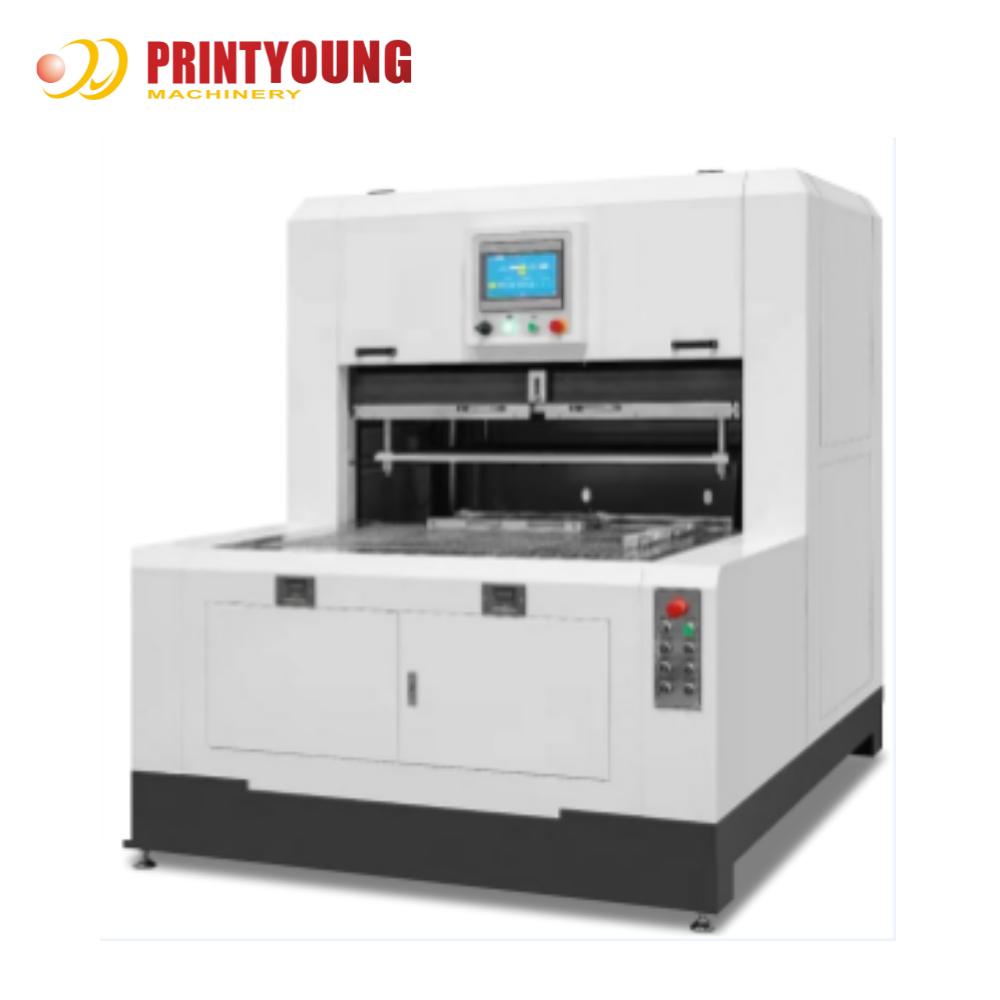

PRY-1080 Automatic Paper Board Stripping and Blanking Machine

PRY-1080 Automatic Paper Board Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine
Informasi Dasar
Tempat asal: CINA
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: Pry-1080
Kuantitas min Order: 1 set
Harga: US 19000 Set
Kemasan rincian: Mengadopsi kemasan kelembaban dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh dan
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 30 set/set per bulan
Hubungi sekarang
<i>Max.</i> <b>Maks.</b> <i>Paper Size</i> <b>Ukuran kertas</b>: 1080*780mm <i>Min.</i> <b>Min.</b> <i>Paper Size</i> <b>Ukuran kertas</b>: 400 * 200 mm
Ukuran Blanking Maks.: 1030 * 730 mm Min. Ukuran blanking: 40 * 40 mm
Tinggi Pengupasan: 40 ~ 120 mm Berat: 3,5 t
Voltase: 380 v Kekuatan: 8 kW

PRY-1080 Automatic Paper Board Stripping and Blanking Machine 0
PRY-1080 Stripping and Blanking Machine
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 1
Features
* Large torque,fast starting,fast braking,fast reversing,precise pressure stroke control,and can work stably in harsh environments of high and low temperatures.It is safer and more stable than ordinary hydraulic systems.
* Compared with ordinary hydraulic systems,it saves 70% energy.
* It is 1/10 of the noise of ordinary hydraulic systems.
* It can continuously maintain pressure with infinite speed regulation,and the oil temperature is 1/3 of that of ordinary hydraulic stations,which prolongs the service life of the hydraulic system and is simple to maintain.
* High-density honeycomb panels can be equipped with φ 5/3 φ stripping pin to achieve full page stripping.The upper and lower honeycomb panels are engraved with scales for fast and accurate alignment.
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 2
Technical Parameters
Model
PRY-1080
Max. Paper Size
1080 * 780 mm
Min. Paper Size
400 * 200 mm
Max. Blanking Size
1030 * 730 mm
Min. Blanking Size
40 * 40 mm
Stripping Height
40 ~ 120 mm
Weight
3.5 t
Voltage
380 V
Power
8 kw
Blanking Speed
1 ~ 2 times/min
Net Weight
3500 kg
Machine Size
2000 * 1700 * 1950 mm
Machine Packing Dimension
2180 * 1870 * 2240 mm
Applications
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 3
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 4
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 5
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 6
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 7
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 8
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 9
PRY-1080 Automatic Paper Board Stripping and Blanking Machine 10
