Name: TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: Tymk
Price: 25,500.00 USD
Availability: InStock

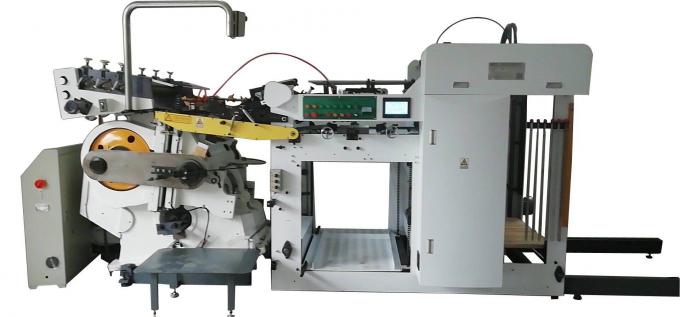

TYMK Hot Stamping and Die Cutting Machine with ZS Series Automatic Feeder

Informasi Dasar

Tempat asal:	Tiongkok
Nama merek:	PRINTYOUNG
Sertifikasi:	CE
Nomor model:	Tymk

Kuantitas min Order:	1 set
Harga:	US 23500 ~ 27500 Set
Kemasan rincian:	Mengadopsi kemasan kelembaban dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh dan
Waktu pengiriman:	30 hari
Syarat-syarat pembayaran:	L/c, t/t
Menyediakan kemampuan:	30 set/set per bulan

Hubungi sekarang

Total Daya Elektro Termal:

9 Kw

Kisaran suhu yang dapat disesuaikan:

1 ~ 999 ° C

Kecepatan Menulis Berkelanjutan:

20 bangau/mnt

Waktu Lewati:

1 ~ 99

Resolusi Pengumpanan Foil:

1 mm

Data Motorik:

4KW / 6Serise

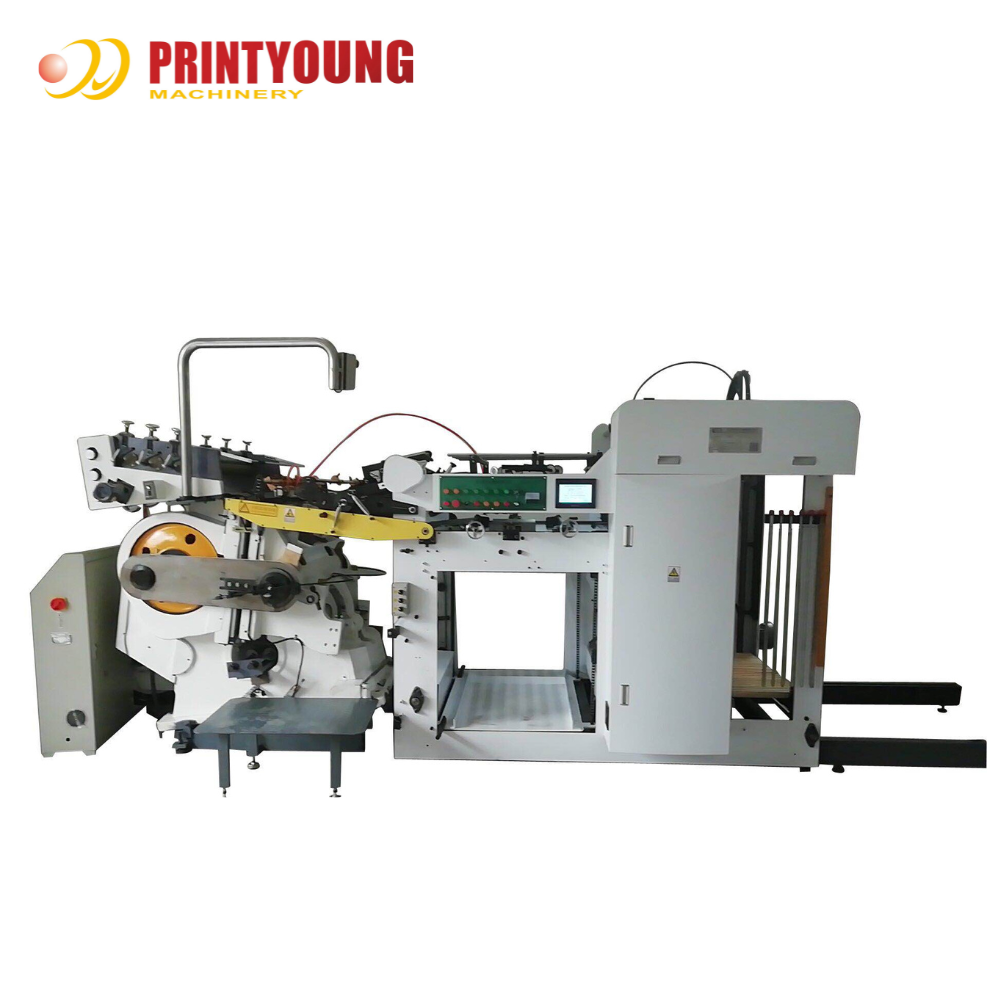

TYMK-930 Automatic Hot Stamping and Die Cutting Machine

Features

This machine is a kind of special equipment used for thermo-printing and creasing various products,such as cardboard,leather and plastic etc.It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and cutting machine for mould cutting and creasing cardboard cases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.The machine is controlled by a chip microprocessor,with the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum.The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained by anybody.

Technical Parameters

TYMK Hot Stamping and Die Cutting Machine
Model & Size	TYMK-930	TYMK-1040	TYMK-1100
Effective Area of Flat Platen	930 * 670 mm	1040 * 720 mm	1100 * 800 mm
Area of Large Lettering Platen	920 * 650 mm	980 * 700 mm	1000 * 750 mm
Total Electro Thermal Power	9 kw
Adjustable Range of Temperature	1 ~ 999 °C
Continuous Lettering Speed	20 storkes/min
Common Foil Feeding	1 ~ 650 mm	1 ~ 780 mm	1 ~ 800 mm
Times of Skip	1 ~ 99
Resolution of Foil Feeding	1 mm
Motor Data	4kw / 6serise
Machines Weight	3500 kgs	4500 kgs	4800 kgs
Packaging Size	1860 * 1790 * 1890 mm	2000 * 2050 * 2000 mm	2020 * 12070 * 2010 mm

ZS Automatic Feeder
Model	ZS-930	ZS-1040	ZS-1100
Size of Face Plate	930 * 670 mm	1040 * 720 mm	1160 * 850 mm
Maximum Cutting Size	920 * 660 mm	1000 * 680 mm	1090 * 790 mm
Minimum Cutting Paper	350 * 460 mm	360 * 460 mm	360 * 520 mm
Thickness of Cutting Paper	card paper : 0.2 ~ 0.3 mm , corrugated paper : 7.8 mm
Maximum Speed	2100 sheets/hr
Total Weight of Machine	6800 kg	7000 kg	7500 kg
Dimensions	5900 * 1900 * 2000 mm	5900 * 2000 * 2000 mm	5900 * 2100 * 2000 mm

Configuration

Multiple electric eyes check to reduce the paper waste.Delivery table is equipped with automatic support device.
Precisely and safely,easy to operate.

Delivery table is equipped with automatic support device.Continuous operation without stop,work efficiently.

The front block and side block can adjust freely in accordance with the paper size.Easy to adjust and precisely.

Collection and delivery table both adopt the vacuum inspiration to avoid the problem of the gripper biting no paper.The device applies to common paperboard,E/B/A corrugated paper and plastic board.
