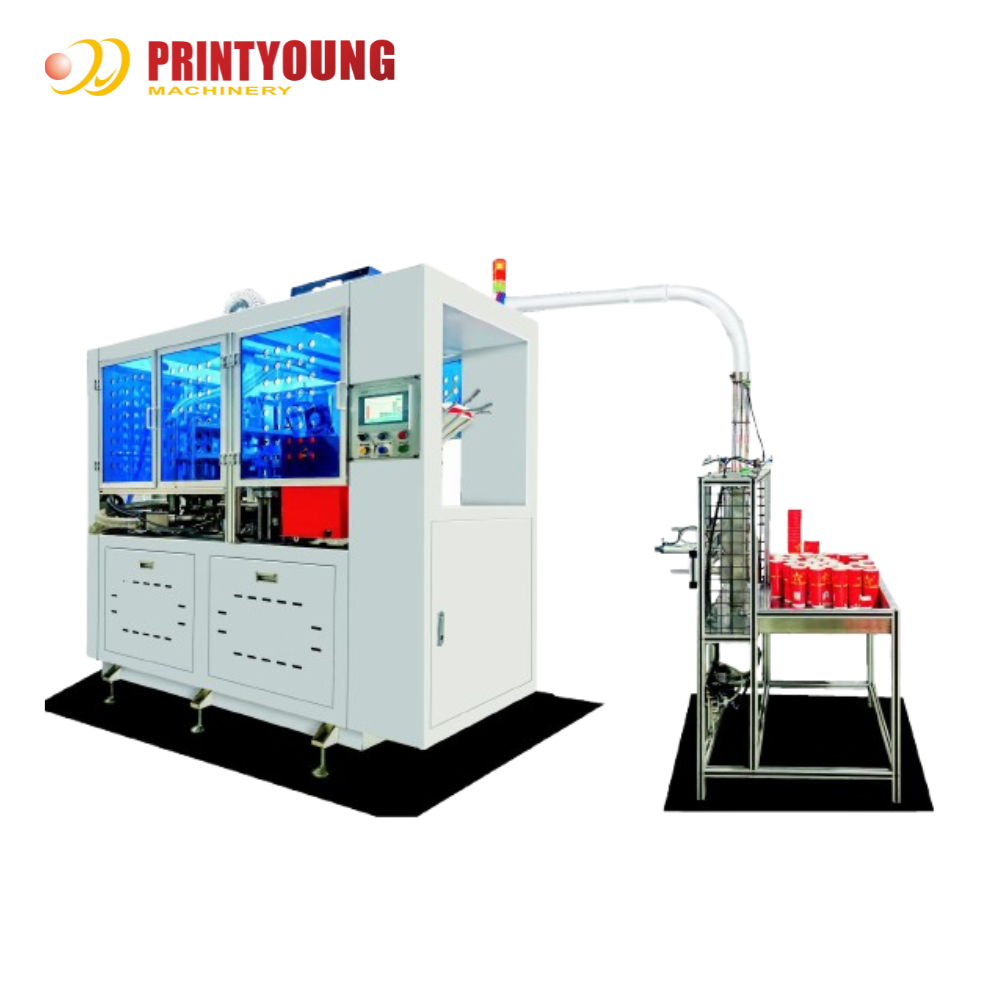

PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty

PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty
Informasi Dasar
Tempat asal: Cina
Nama merek: PRINTYOUNG
Sertifikasi: CE
Nomor model: Cungkil-S90
Kuantitas min Order: 1 set
Harga: USD 15000 Set
Kemasan rincian: Mengadopsi kemasan tahan lembab dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh d
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C, T/T
Menyediakan kemampuan: 30 set per Bulan
Hubungi sekarang
Spesifikasi Piala: 3 ~ 9 ons Diameter Atas Cangkir Kertas: 40~80mm
Diameter bawah Paper Cup: 30~56mm Tinggi cangkir kertas: 40~95mm
Spesifikasi kertas: Kertas PE Tunggal / Ganda Gram Berat Berat: 150 ~ 320 gram
Spesifikasi Sumber Udara: 0,6 ~ 0,8 MPa , 0,4 m³/mnt Berat: 2800kg

PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 0
PRY-S90 Paper Cup Forming Machine
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 1
Features
The fast paper cup machine is designed and manufactured based on the traditional cam transmission operation model (mechanized transmission gear structure).In the paper cup and bowl equipment industry for many years,its stability,speed,accuracy and quality have been recognized by the market and customers.The integrated control of paper suction,cup turning,cup lifting and other processes operates smoothly,and has the advantages of quickly identifying and solving faults.
1.PLC touch screen control system makes the entire machine operation simplely and smoothly,while multi-station light and shadow alarms ensure equipment protection more intelligent,with simpler worker operation.
2.The transmission components,including camshaft and gears,are all made from 20CrMnti material through complex process such as rough machining,quenching,and precision grinding manufacturing;thereby extending the maintenance-free period and ensuring greater stability of the equipment.
3.The suction paper unit can be optionally configured with upper and lower suction modes or a rotating suction paper mode.Additionally,automatic paper feeding and base paper lifting are available as optional accessories downgraded auxiliary function.
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 2PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 3PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 4PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 5
Technical Parameters
Model
PRY-S90
Cups Specifications
3 ~ 9 oz
Paper Cup Top Diameter
40 ~ 80 mm
Paper Cup Bottom Diameter
30 ~ 56 mm
Paper Cup Height
40 ~ 95 mm
Paper Specification
single/double PE paper
Gram Weight of Weight
150 ~ 320 g
Capacity
100 ~ 120 pcs/min
Power Supply
380V 50Hz 3Phase
Total Power
13 kw
Air Source Specification
0.6 ~ 0.8 MPa , 0.4 m³/min
Weight
2800 kg
Machine Size
2300 * 1200 * 1800 mm
Collection Table Size
900 * 600 * 1500 mm
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 6
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 7
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 8
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 9
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 10
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 11
PRY-S90 Automatic Ultrasonic and PLC Control Paper Cup Forming Machine High-Speed 380V 1 Year Warranty 12
