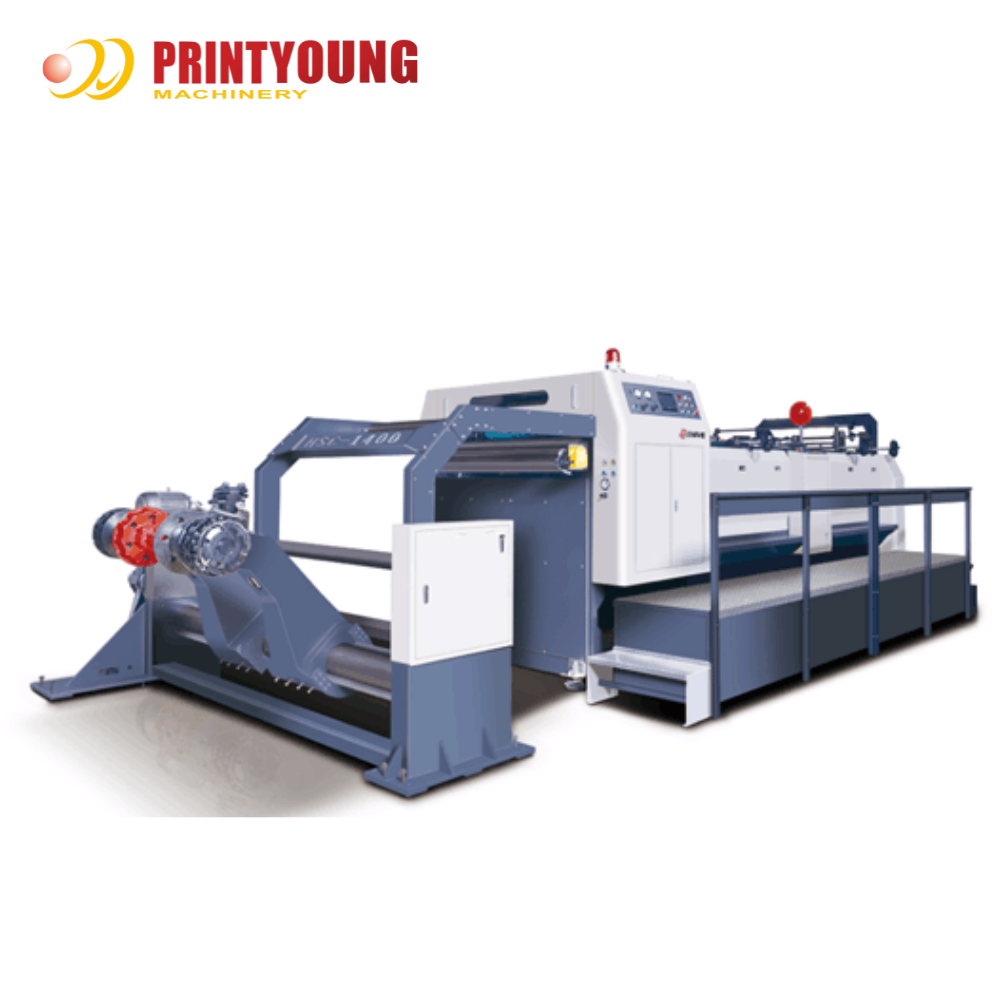

CHM-1400 1700 Automatic Rotary Paper Sheeting Machine

Features

This machine is specialist for horizontal and vertical cutting paper rolling materials to A4, A3,A2 size etc. it can be with 1 roll,or 2rolls,or 4 rolls etc.

Technical Parameters

Model	CHM-1400	CHM-1700
Model of Cutting Paper	the up knife cut reciprocally and the down knife is fixed
The Paper Scope	50 ~ 500 g/m²
The Largest Diameter of Paper	1650mm (65〃)
The Biggest Sheet	1400mm (55〃)	1700 mm
The Total Power	23 kw	25 kw
The Length of the Cut	450 ~ 1450 mm
Cut Off the Accuracy	± 0.5 mm
High Cutting Speed	300 cuts/min
The Highest Cutting Speed	300 m/min
Air Pressure Source Demand	0.8 MPa
Design of the Power Supply	AC 380V/220V 50Hz
Weight	9000 kgs	9000 kgs
Production	actual output paper-based materials,paper, gram,cutting length, number of package paper, operator technology and operating conditions

Configuration

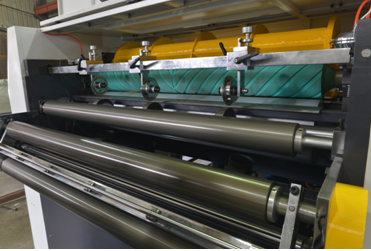

1.In the above knife in rotary,the fixed knife set below:

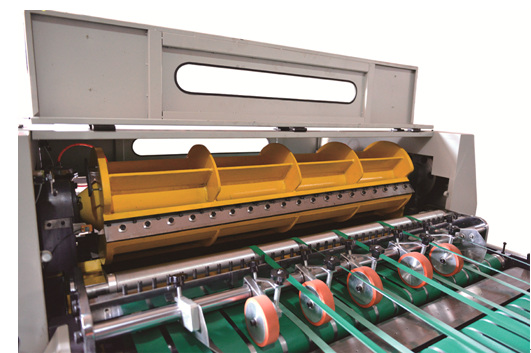

Above knife:Use the british-style cropped way to effectively reduce the cutting load and noise,and prolong the life of the cutting.The knife roller body with stainless steel precision machining after welding,and the dynamic balance adjustment,effectively reduce the vibration and noise generated when high-speed operation.

The following knife:knife block made of cast iron,then by precision machining,good stability.
Back to the cutter:special alloy precision knife processed into,long life,easy to adjust the blade.

2.Paper clip mode:controlled by hydraulic clamped paper arm to open and close and move back and forth and lift. can carried steady and rapid rise and fall move,more easy and convenient to operate.
3.Active roll:there are roller surface expansion grain design,use gasbag control roller the body pressurized jammed paper.

Adjusting Diagonal System

The upper and lower blade installation adopt a certain backing and the adjustment screw control,ensures easy installation and adjustment knife.In the left tool post,the automatic control system adopt the international first rate AC servo motor and driver from Germany,AC transducer from Germany,and all important units adopt famous imports with good quality.

Electrostatic Eliminating Part

Type:the equipment has static elimination bars to avoid the static electricity of the paper.

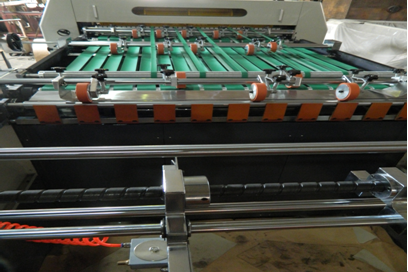

Transmission Parts

1.It can keep good stabilization along with high cutting speed.
2.The first conveyor section:speed is fast ,quickly separated Cut off the paper.
3.The second conveyor section:slow speed, paper is to be tiles stacked like send out.
4.The paper conveying section:avoid paper offsets.

Prevent Curling

Can effectively remove curl the paper roll. Make the paper roll more smooth,more conducive to the stability of the paper roll tension.

Automatic Paper Part

1.Type:unwinding adopt hydraulic pressure loading,the paper stack to a certain height,automatic lowering.
2.Paper effective height stacking maximum 1300mm (51").
3.Review systems:

1)Frontage electrodynamic type paper collect.
2)Both sides pneumatic type paper collect.
3)Tailgate is adjustable baffle.

Automatic Label Insert System

Using can accurately count label insert system,operators only need to in the touch screen input quantity of paper after,the quantity of paper can do the marking as the setting already.

Electric Control Part

Using PLC system,making the operation more simple,automated,cutting length,quantity and the total number of other finished products can be entered directly on the touch screen in the actual cutting length and cutting the number of timely display.

Label:

Tempat asal:	Cina
Nama merek:	PRINTYOUNG
Sertifikasi:	CE
Nomor model:	CHM-1400 , CHM-1700

Kuantitas min Order:	1 Set
Harga:	USD 65000 ~ 75000 Set
Kemasan rincian:	Mengadopsi kemasan tahan lembab dan tahan guncangan yang cocok untuk transportasi jalan jarak jauh d
Waktu pengiriman:	60 hari kerja
Syarat-syarat pembayaran:	L/C, T/T
Menyediakan kemampuan:	10 Set Per Bulan

Model:	CHM-1400 , CHM-1700	Ruang Lingkup Kertas:	50 ~ 500 gram/m²
Diameter Kertas Terbesar:	1650mm (65〃)	Lembaran Terbesar:	1400mm, 1700mm
Total Kekuatan:	23kw, 25kw	Panjang Potongan:	450~1450mm
Potong Akurasi:	± 0,5mm	kecepatan potong tinggi:	300 cut/mnt
Kecepatan Pemotongan Tertinggi:	300 m/mnt	Berat:	9000kg, 10000kg
